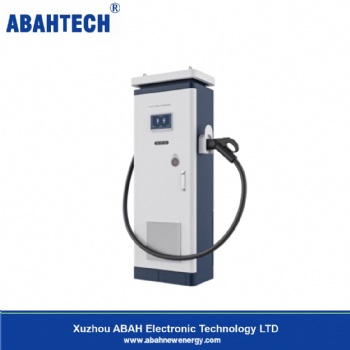

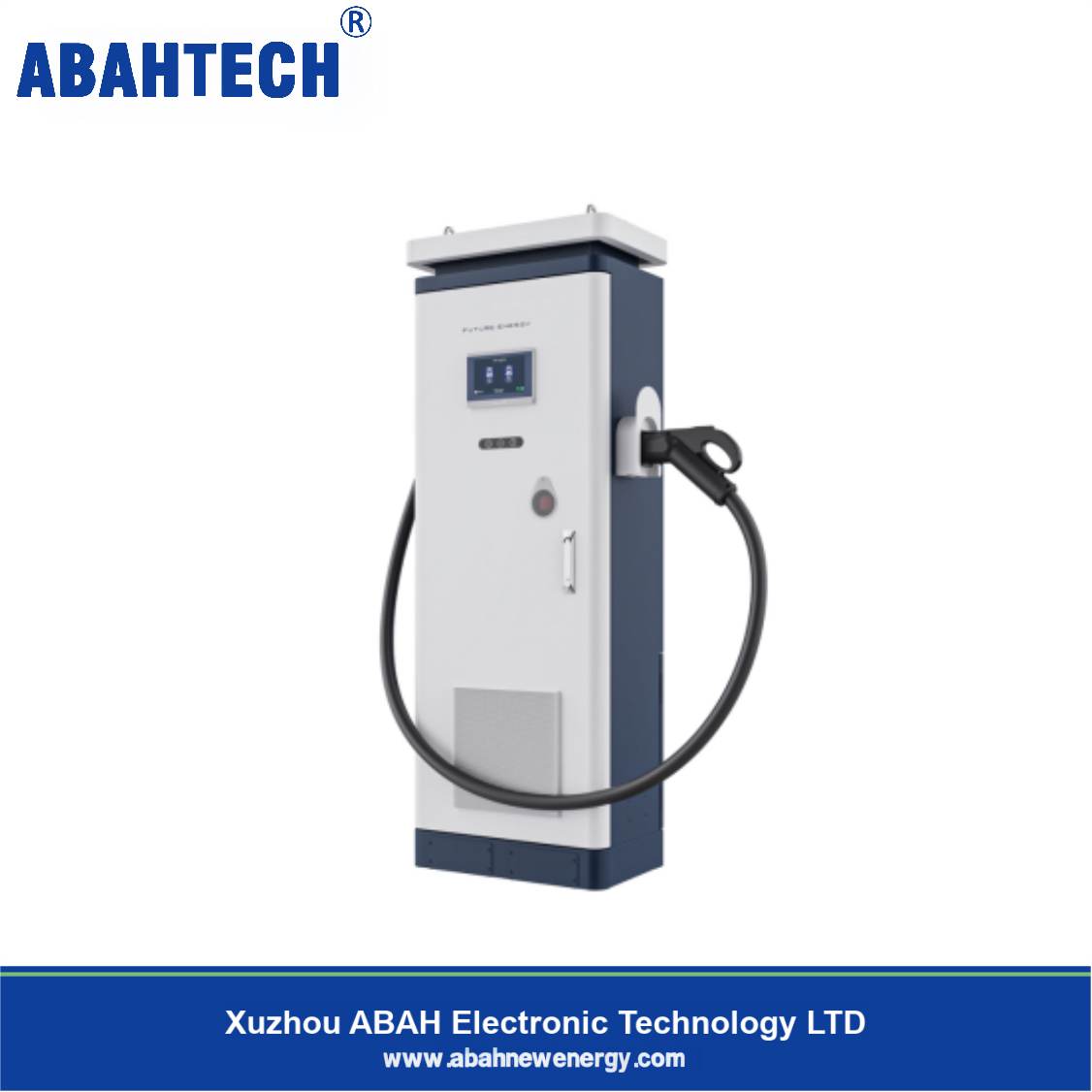

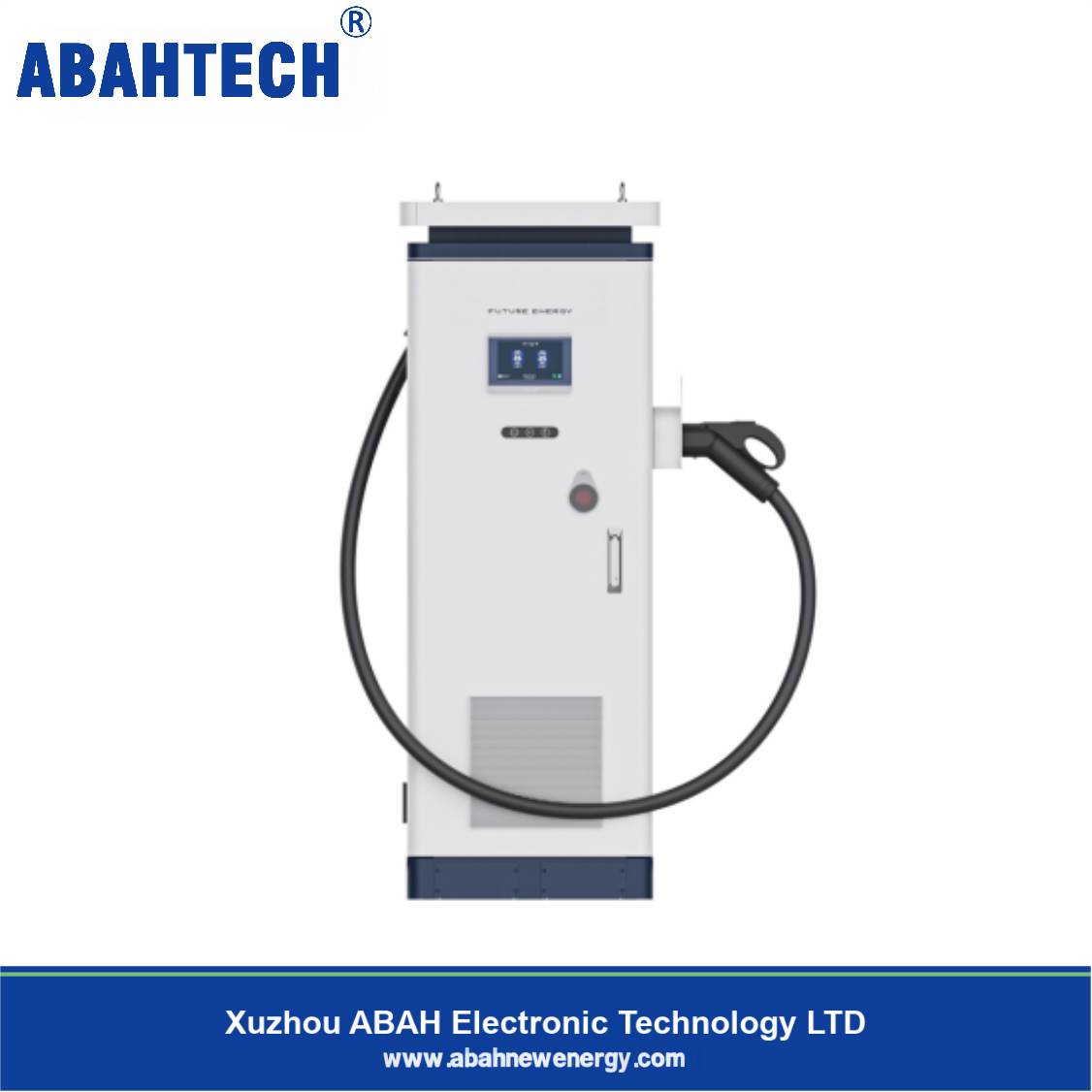

The configuration of this single gun charging terminal is flexible and can be
applied to various scenarios. Optional touch screen. Suitable for supporting automobile
enterprises, commercial real estate, government enterprises, gas stations, public fast
charging stations, etc. It can charge various types and capacities of electric vehicles,
including passenger cars, buses, sanitation vehicles, heavy-duty trucks, etc.
Category | Specifications | Air cooled data parameters | Liquid codled data parameters |
Appearance structure | Dimensions(l x d x h) | 500mm x 300mm × 1650mm | 700mm x 400mm × 1700mm |
Weight | 92kg | 122kg | |
Length of charging cable | 5m | ||
Connectors | Ccs2 || gbt*single | ||
Output voltage | 200 - 1000vdc | ||
Output current | 0 to 1200a | ||
Insulation (input - output) | >2.5kv | ||
Effciency | ≥94% at nominal output power | ||
Power factor | >0.98 | ||
Communication protocol | Ocpp 1.6j | ||
Functional design | Display | Customize according to requirements | |
Rfid system | Iso/iec 14443a/b | ||
Access control | Rfid: Iso/iec 14443a/b || credit card reader (optional) | ||
Communication | Ethernet - standard || 3g/4g modem (optional) | ||
Power electronics cooling | Air cooled | Liquid codled | |
Work environment | Operating temperature | -30°c to 55°c | |
Working||storage humidity | ≤ 95% rh || ≤ 99% rh (non-condensing) | ||
Altitude | <2000m | ||
Ingress protection | Ip55 || ik10 | Ip54 || ik10 | |
Safety design | Safety standard | Gb/t 18487 2023, gb/t 20234 2023, gb/t 27930 | |
Safety protection | Overvoltage protecion, lightning protection, overcurrent protection,leakage protection, waterproof protection, etc | ||
Emergency stop | Emergency stop button disables output power | ||
