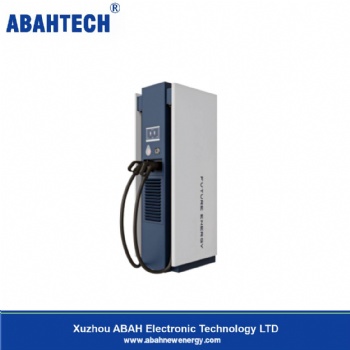

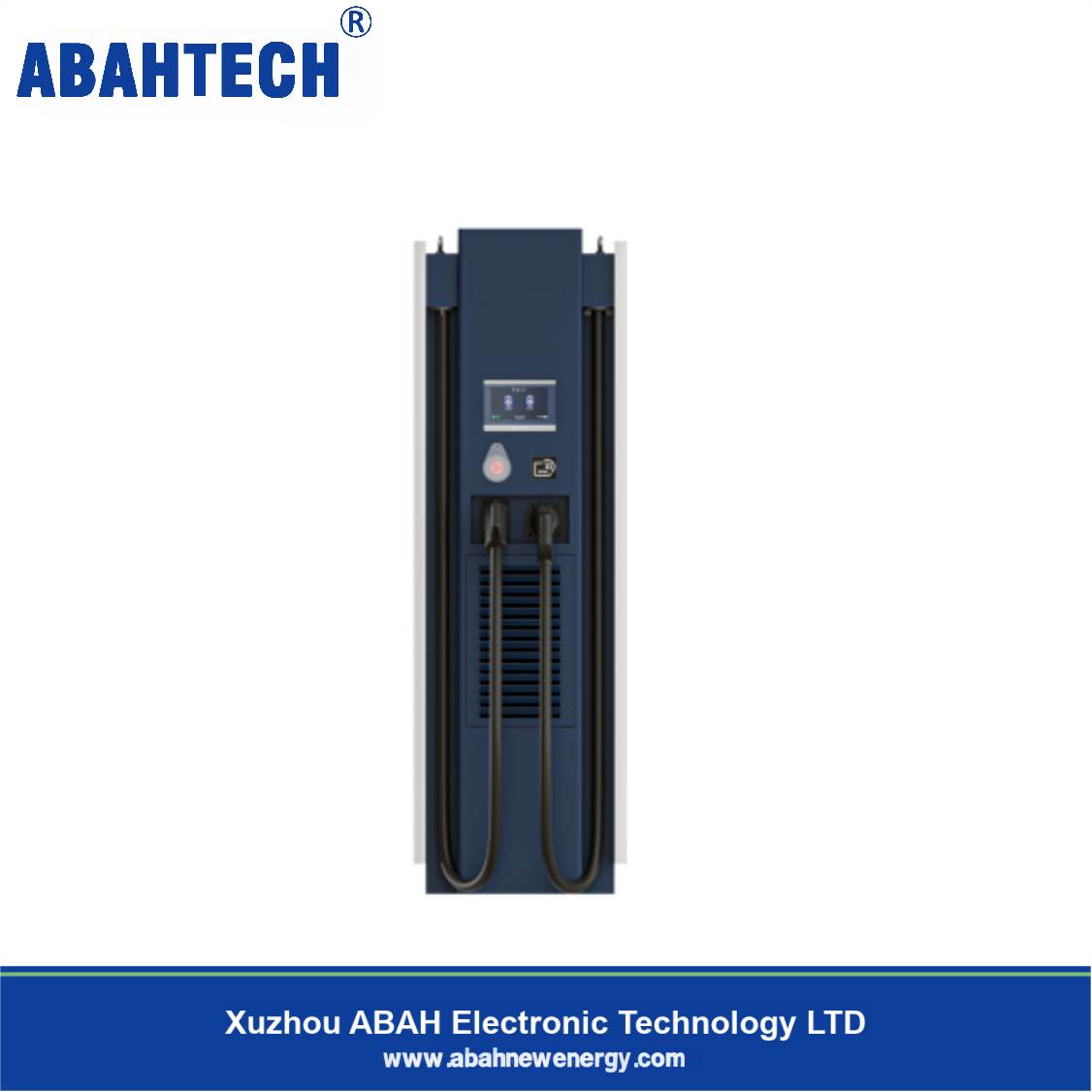

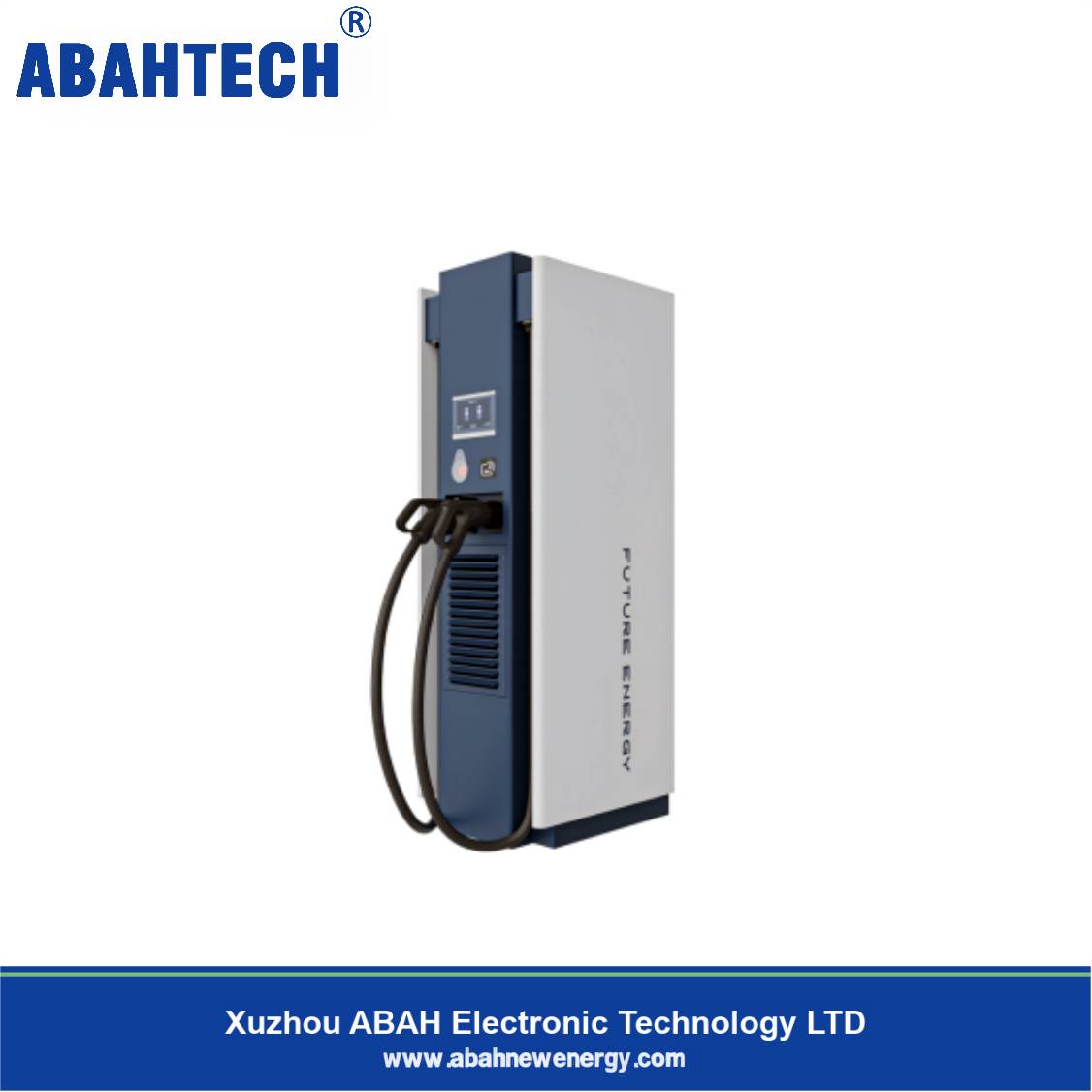

The cabinet meets the customized requirements of State Grid Corporation of China.
The main body adopts a color blocking design, with a more simple and youthful style.
Standard 60kW, can be expanded to 80kW.
Category | Specifications | Data parameters | |
Appearance structure | Dimensions(l x d x h) | 600mm x 700mm × 1870mm | |
Weight | 300kg | ||
Length of charging cable | 5m | ||
Connectors | Ccs1 || ccs2 || chademo || gbt || nacs | ||
Electrical indicators | Input voltage | 400vac / 480vac (3p+n+pe) | |
Input frequency | 50/60hz | ||
Output voltage | 200 - 1000vdc (the constant power : 300 - 1000vdc) | ||
Output current (air cooled) | Ccs1- 200a || ccs2 - 200a || chademo - 150a || gbt- 250a || nacs- 200a | ||
Output current (iquid cooled) | Ccs2 - 500a || gbt- 8000a || gbt- 600a || gbt- 400a | ||
Rated power | 60-80kw | ||
Effciency | ≥94% at nominal output power | ||
Power factor | 0.98 | ||
Communication protocol | Ocpp 1.6j | ||
Functional design | Display | 7" Lcd with touch screen | |
Rfid system | Iso/iec 14443a/b | ||
Access control | Rfid: Iso/iec 14443a/b || credit card reader (optional) | ||
Communication | Ethernet - standard || 3g/4g || wifi | ||
Power electronics cooling | Air cooled || liquid codled | ||
Work environment | Operating temperature | -30°c to 55°c | |
Working||storage humidity | ≤ 95% rh || ≤ 99% rh (non-condensing) | ||
Altitude | <2000m | ||
Ingress protection | Ip54 || ik10 | ||
Safety design | Safety standard | Gb/t,ccs2,ccs1,chademo,nacs | |
Safety protection | Overvoltage protecion, lightning protection, overcurrent protection,leakage protection, waterproof protection, etc | ||
Emergency stop | Emergency stop button disables output power | ||
