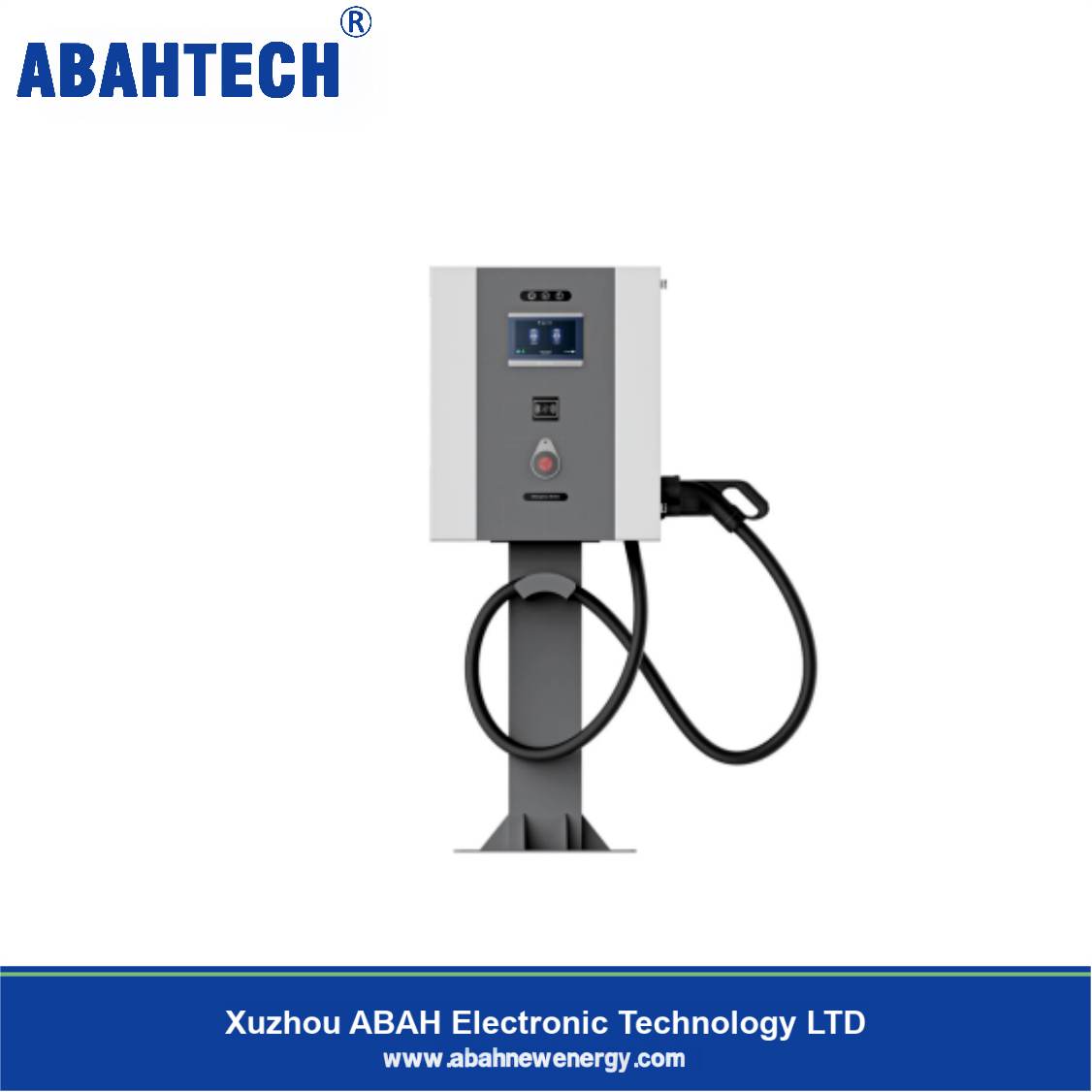

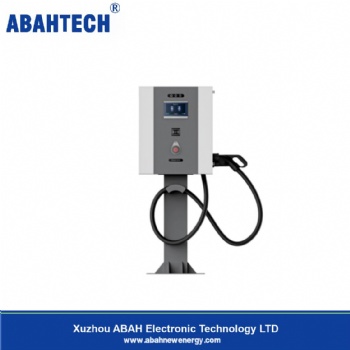

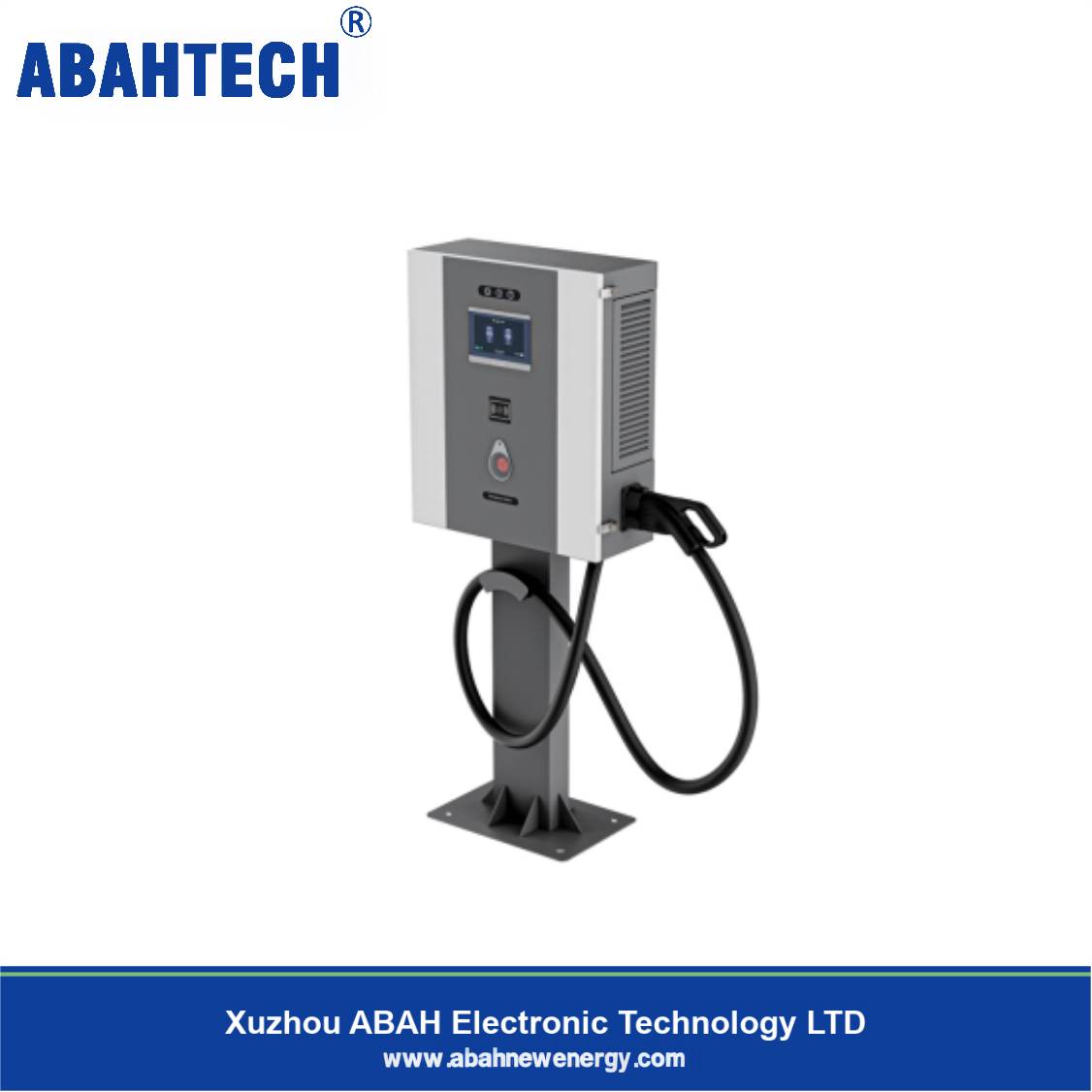

20,30,40kW Series DC EV Charger WY

Appearance structure

Dimensions(l x d x h)

Pllar630mm x 260mm x1600mm wall 630mm x 260mm × 750mm

Weight

100kg

Length of charging cable

5m

Connectors

Ccs1 || ccs2  ||  chademo  || gbt  single gun

Electrical indicators

Input voltage

400vac / 480vac (3p+n+pe)

Input frequency

50/60hz

Output voltage

200 - 1000vdc

Output current

Ccs1- 100a || ccs2 - 100a ||  chademo - 100a ||  gbt- 100a

Rated power

20,30,40kw series dc ev charger

Effciency

≥94% at nominal output power

Power factor

>0.98

Communication protocol

Ocpp 1.6j

Functional design

Display

7" Lcd with touch screen

Rfid system

Iso/iec 14443a/b

Access control

Rfid: Iso/iec 14443a/b  || credit card reader (optional)

Communication

Ethernet - standard || 3g/4g modem (0ptional)

Power electronics cooling

Air cooled

Work environment

Operating temperature

-30°c to 55°c

Working||storage humidity

≤ 95% rh || ≤ 99% rh (non-condensing)

Altitude

<2000m

Ingress protection

Ip54 || ik10

Safety design

Safety standard

Gb/t,ccs2,ccs1,chademo,nacs

Safety protection

Overvoltage protecion, lightning protection, overcurrent protection,leakage protection, waterproof protection, etc

Emergency stop

Emergency stop button disables output power
