Complete models, fully covering GBT,CCS1,CCS2,CHAdeMO,NACS series products.

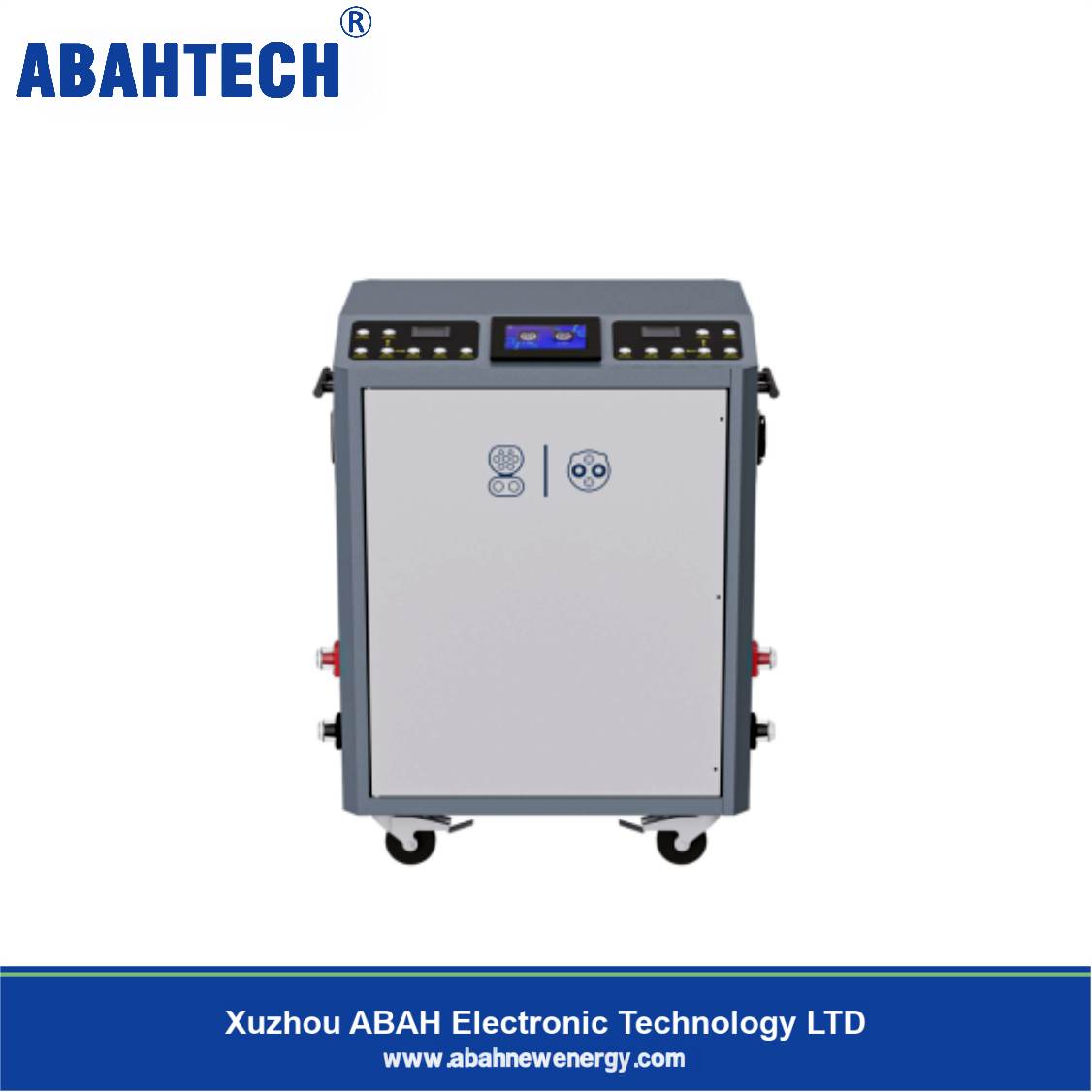

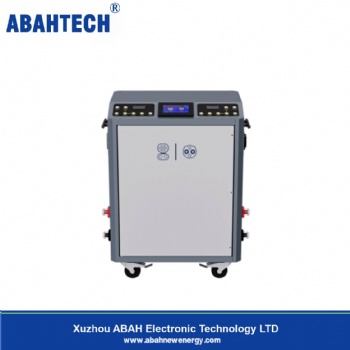

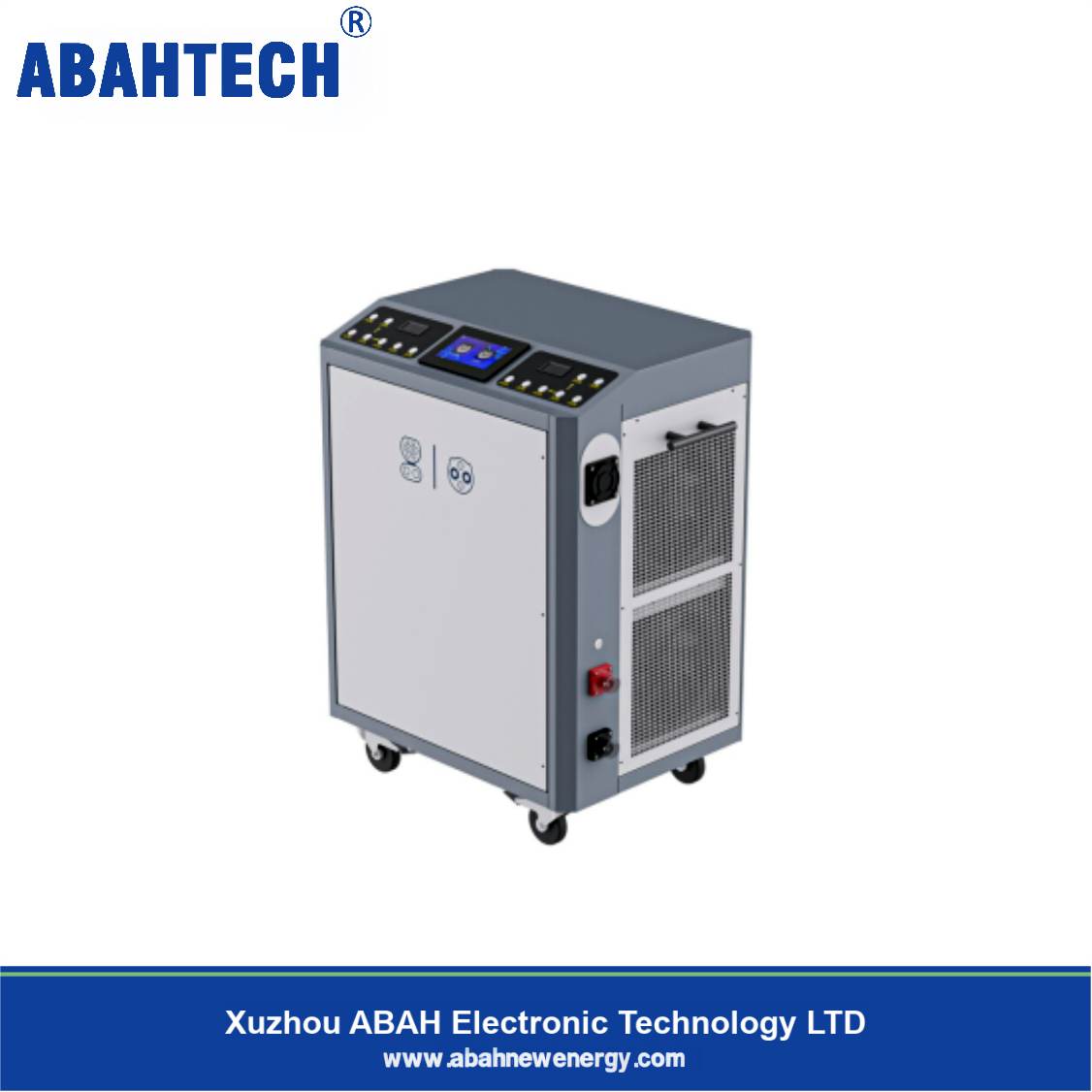

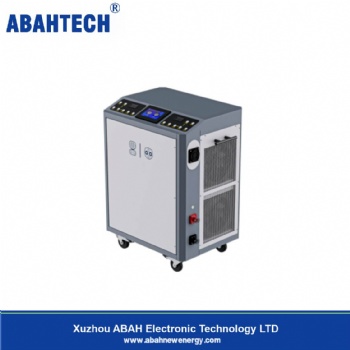

All products are designed with dual sockets, supporting dual gun charging test.ln addition to the built-in load, the product can also be connected to external loads.The product is equipped with a 7-inch touch LCD screen, and the keys are equipped with lights, easy to use.
Category | GB/T | CHAdeMo | CCS1/CCS2 | NACS(Tesla) |
User interface language | Switch between chinese and english | |||
Operating vdltage | AC230v±20% | |||
Display method | 7-inch touch screen | |||
Operating temperature | -30°c-70°c | |||
Size | 800mm x 600mm x 1100mm | |||
Weight | ≤160kg | |||
Detection object | Gb/t ev charger | Chademo ev charger | Ccs1/ccs2 ev charger | Nacs(tesla) ev charger |
Socket standard | Gb/t | Chademo | Ccs1/ccs2 | Nacs(tesla) |
Bult-in resistor rod power | 15kw | 15kw | Dc15kw+ac7.5kw | Dciskw |
Built-in maximum test | Dc 15a | Dc 15a | Dcisa+ac10a | Dcisa |
Current gear | 5a, 10a, 15a | |||
Maximum test output | Dc1000v | Dc1000v | Dc1000v+ac400v | Dc1000v |
Maximum test current | 200a | 200a | 200a | 200a |
Parts list | Ac230v 1 set of input power cord | |||
2 sets of external load positive and negative connection plugs | ||||
