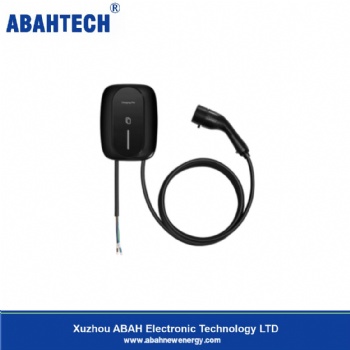

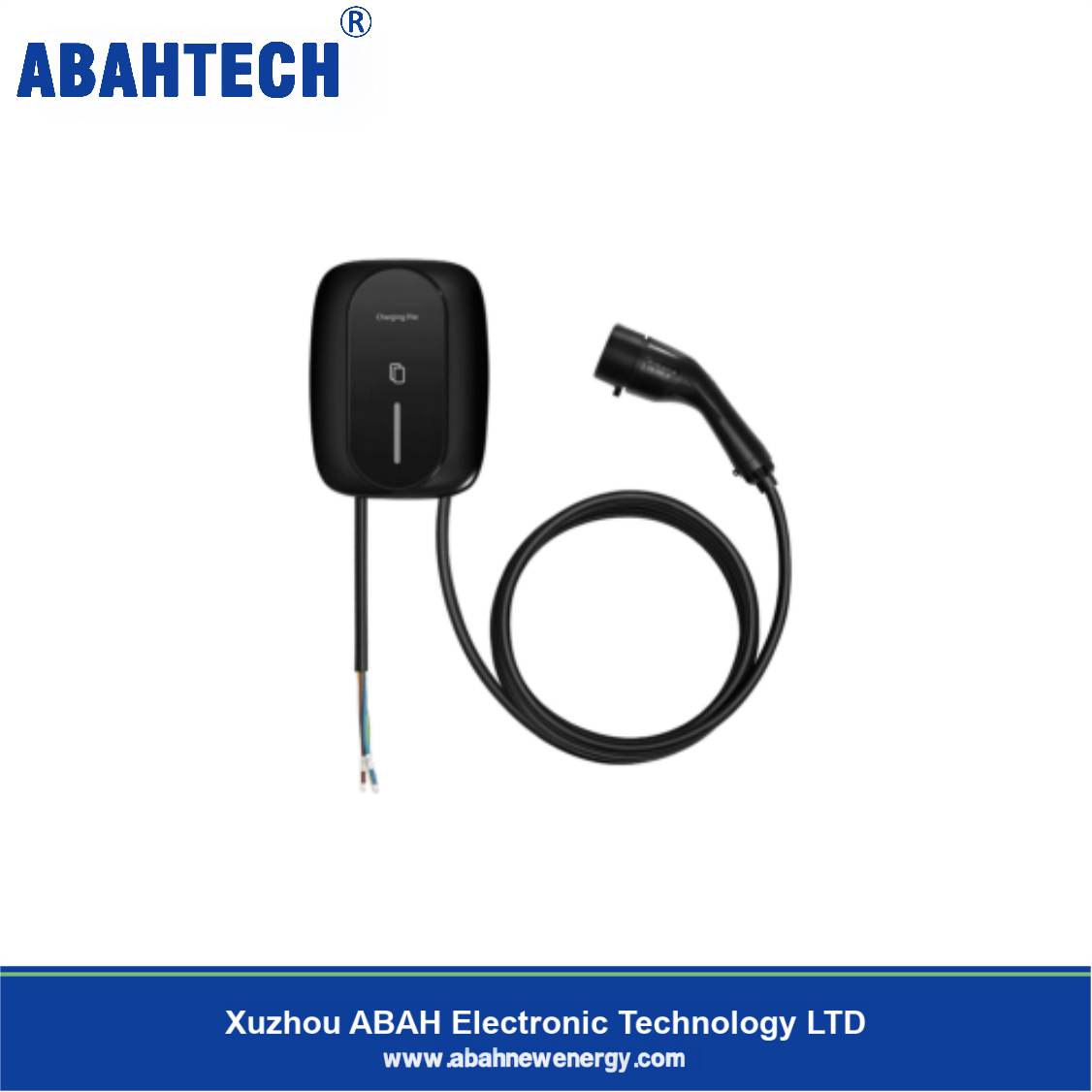

Residential Wall-mounted EV Charger Series DC

Modle

KN-BC Series

Shell material

Gun Head-Control Box PC 9330

Rated voltage

AC 240V/ AC 380V

Rated current

16A/32A

Rated power

7KW/11KW/22KW

Rated frequency

50HZ/60HZ

Stand by power

<3W

Operating temperature

-25℃-50℃

Operating humidity

5%-95%

Protection level

BOX IP55/Connector IP67

Compliant with safety standards

GB/T20234.1-2-2015 /IEC 61851

Flame retardant rating

UL-V0

Start

Swipe to start

Box specification

L*W*H:410*410*125MM

Security protection

Product over temperature protection,relay fault detection,overcurrent protection,overvoltage protection,undervoltage protection,leakage protection,plug temperature protection,ungrounded protection,short circuit protection,equipment/connection abnormal protection and abnormal protection of car charging system.
